Model：MIX-200
Brand：Jingxin
Specifications ：Set
Introduction：MIX-200 multi-tube vortex oscillator adopts DC brushless motor and microcomputer control technology. The unique knob operation mode is simple and easy to use. It is suitable for the fields of biotechnology, microbiology and medical analysis.
product description:

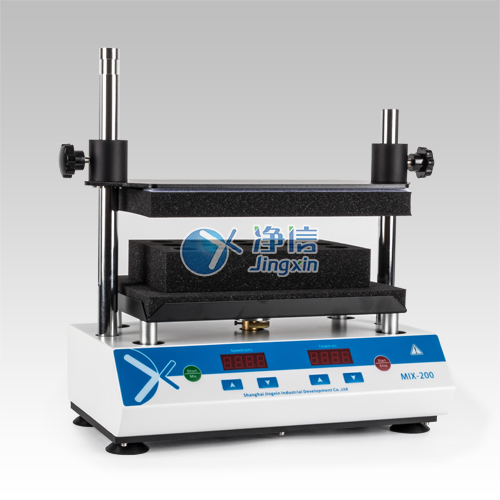

MIX-200 multi-tube vortex oscillator adopts DC brushless motor and microcomputer control technology. The unique knob operation mode is simple and easy to use. By changing different test tube fixing sponges, it can mix and cultivate various commonly used test tubes, and can mix and process 50 samples at a time. It is suitable for the fields of biotechnology, microbiology and medical analysis.
Features:
◆Button operation mode, simple and easy to use;
◆ The timing time can be set arbitrarily within the range of 1min ~ 99h59min, and the prompt sound will be emitted automatically after the operation is over;
◆ A variety of sponge test tube racks are available for a wide range of uses;
◆ Soft start, uniform acceleration, effectively avoiding sample splashing;
◆ Driven by DC brushless motor, precise speed, long life and maintenance-free;
◆It can process 50 test samples at a time, making the experiment efficient and fast;
◆ Simple operation panel, precise microprocessor control, LED real-time display of speed and time;
◆ Humanized program design, built-in jog and timing operation modes;
Product parameters:
Main parameters | Parameter range |
range of rotation | 500~2800rpm |
time setting | 1min ~ 99h59min |
Amplitude | 4mm Horizontal rotation |
Load | 5kg |
input power | 100W |
Dimensions | 240*420*430mm |
Input voltage | AC100-230V 1.5A |
weight | 14kg |
Optional accessories:
Model | Test tube rack specifications | Applicable test tube specifications (outer diameter) |
MIX-200-T10 | 50x￠10mm | ￠9~￠10mm |
MIX-200-T12 | 50x￠12mm | ￠11~￠13mm |
MIX-200-T15 | 50x￠15mm | ￠14~￠17mm |
MIX-200-T20 | 50x￠20mm | ￠18~￠21mm |
MIX-200-T25 | 15x￠25mm | ￠24~￠27mm |
MIX-200-T29 | 15x￠29mm | ￠28~￠32mm |
